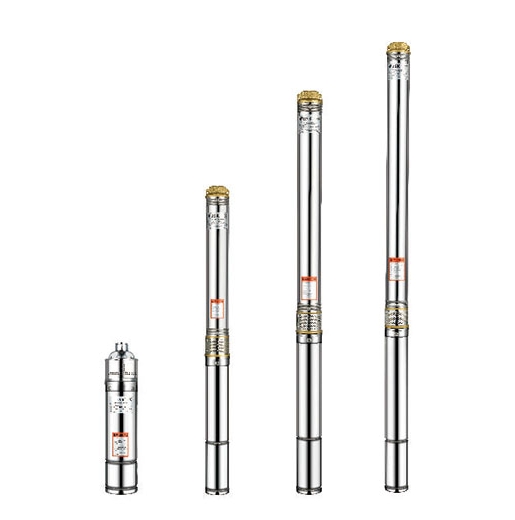

USK Submersible Water Pump 0.5HP 3SDM214

The “USK Submersible Water Pump 0.5HP 3SDM214” is a very specific model of a submersible pump designed for deep well applications, particularly in narrower boreholes. The model code 3SDM214 provides crucial details about its design and performance.

Here’s a detailed breakdown:

Key Features and Specifications (USK 0.5HP 3SDM214 Submersible Water Pump):

• Pump Type: Submersible Borehole Pump. It’s designed to be fully immersed in the water source (borehole, deep well, or reservoir) and pushes water upwards, eliminating suction limitations.
• Horsepower (HP): 0.5 HP.
  • Wattage: Approximately 370 Watts (0.37 kW). This is an entry-level power for borehole pumps, suitable for domestic water supply.
• Model Code: 3SDM214
  • “3”: Refers to the diameter of the pump in inches. This means it’s designed to fit into a 3-inch diameter borehole casing or larger. This is a common size for narrower boreholes, offering flexibility where 4-inch casings might be too wide.
  • “SDM”: Often stands for Stainless Steel Deep Well Motor, implying that the motor casing and pump housing are constructed from durable and corrosion-resistant stainless steel. It also signifies that it’s a multi-stage centrifugal pump, which uses a series of impellers to generate high pressure (head) over long vertical distances.
  • “2”: This number typically represents the approximate flow
