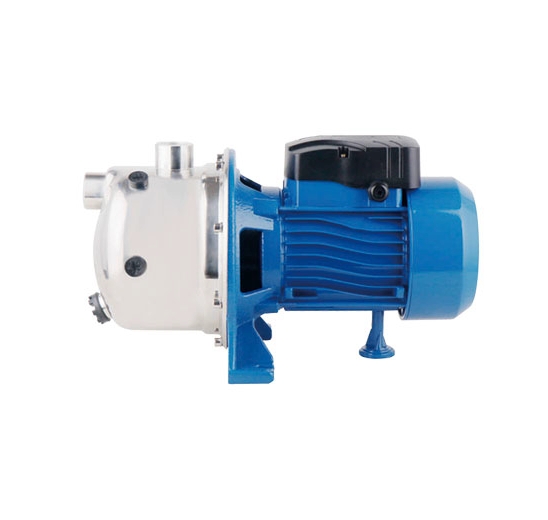

Maxmech Surface Water Pump “1HP Stainless Head Copper”

• Power: 1 HP (Horsepower), approximately 750 Watts (0.75 kW). This provides robust power for significant water transfer and pressure boosting.
• Motor Windings: Copper. This is a critical component for efficiency and longevity.
  • Superior Conductivity: Copper conducts electricity better than aluminum, leading to less energy loss as heat.
  • Higher Efficiency: Translates to lower electricity bills over the pump’s lifespan.
  • Durability & Heat Dissipation: Copper is more robust and handles heat better, preventing motor burnout and extending the pump’s operational life.
• Pump Head/Body: Stainless Steel. This is the key distinguishing feature.
  • Corrosion Resistance: Stainless steel is highly resistant to rust and corrosion, even when pumping aggressive or slightly acidic water. This is a major advantage over cast iron, which can corrode over time, especially with inconsistent water quality.
  • Hygiene: Ideal for potable water applications (drinking water) as it doesn’t impart taste or contaminants.
  • Durability: Offers excellent resistance to wear and tear.
  • Aesthetics: A stainless steel pump head often looks cleaner and more modern.
• Maximum Head (Height): Typically ranges from 40 to 60 meters, depending on the specific model and impeller design. This indicates its ability to push water to high elevations.
• Maximum Suction Lift: Around 7 to 9 meters, standard for surface pumps.
• Maximum Flow Rate: Expect flow rates in the range of 40 to 70 liters per minute (L/min), or 2,400 to 4,200 liters per hour.
• Impeller Material: Often brass or stainless steel, further contributing to corrosion resistance.
• Inlet/Outlet Size: Commonly 1 inch x 1 inch, but some models might have slightly larger connections.
• Voltage: Single-phase 220V-240V AC (50Hz) for household use in Kenya.
• Protection: Usually includes a thermal overload protector to prevent motor damage.

Advantages of “Stainless Head Copper” over standard models:

• Extended Lifespan: The combination of copper windings and a stainless steel pump head significantly increases the pump’s durability and resistance to harsh operating conditions.
• Reliability: Less prone to internal corrosion or motor issues, leading to more consistent performance.
• Hygienic: Best suited for applications where water quality and purity are paramount (e.g., drinking water, food processing).
• Lower Maintenance: Due to enhanced material quality, it may require less frequent maintenance compared to pumps with cast iron bodies.

Common Applications in Kenya:

• Premium Residential Water Supply: For homes where clean, consistent, and pressurized water is critical, especially if the water source has varying quality.
