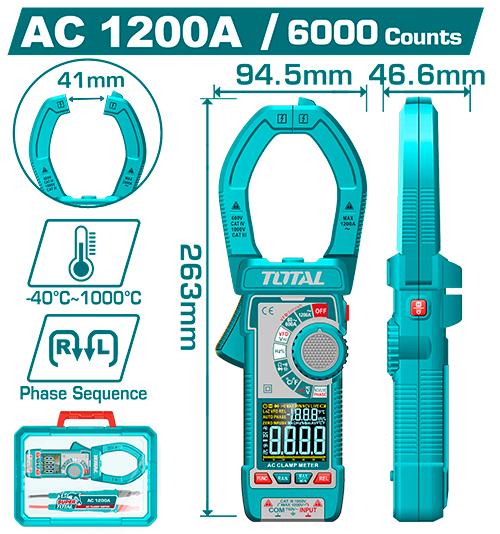

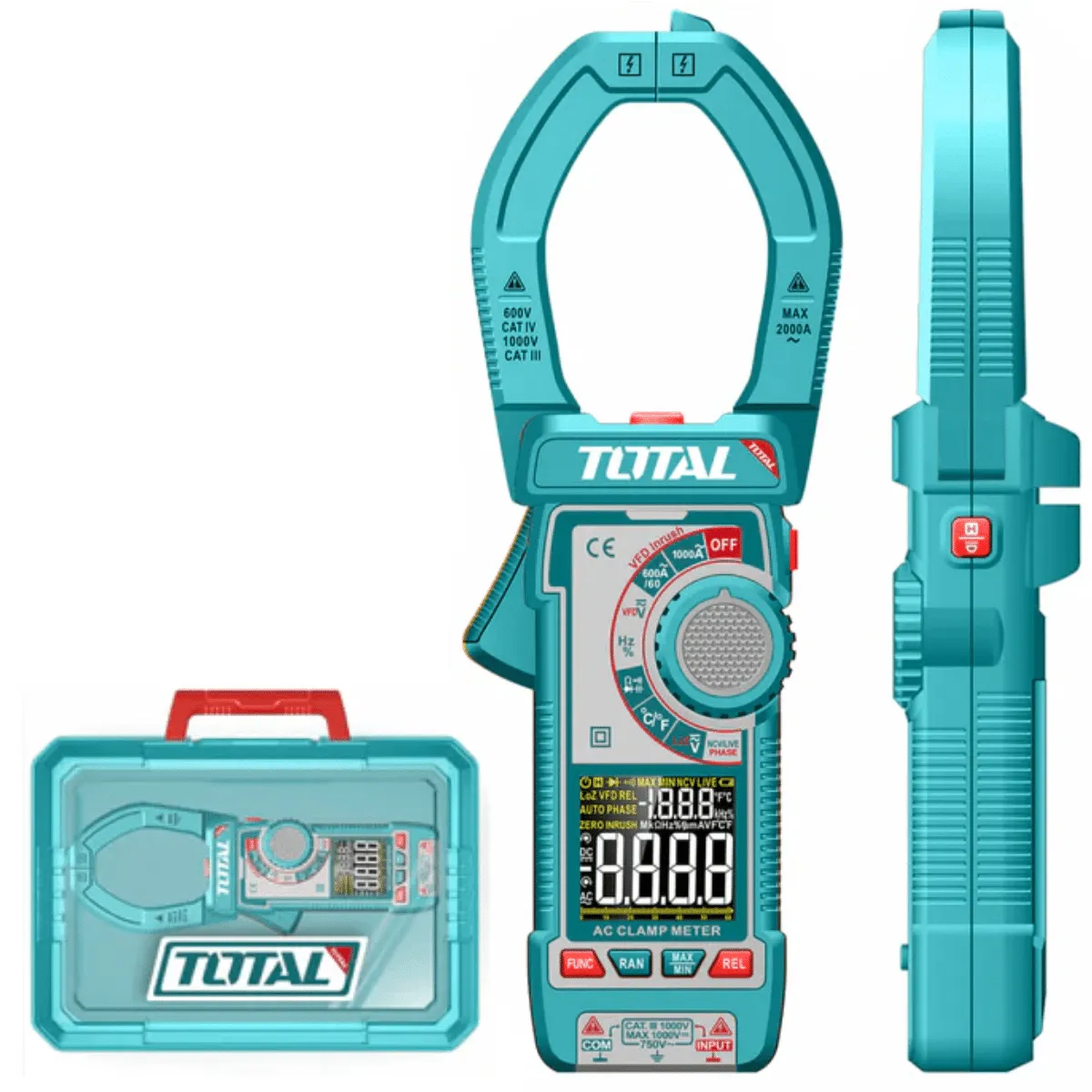

Total TMT7610001 Digital AC clamp meter 1200A 6000Counts
KSh7,999.00
Advanced Diagnostic Features
-
LowZ (Low Impedance Voltage Mode): Eliminates “ghost voltage” readings caused by capacitive coupling in parallel wiring.
-
LPF (Low Pass Filter / VFD Mode): Filters out high-frequency noise when taking measurements on variable-frequency drives and motor controllers.
-
Phase Sequence Function: Helps identify 3-phase power rotation to ensure proper motor wiring direction.
-
Safety & Core Tools: Includes Non-Contact Voltage (NCV) detection, diode test, continuity buzzer, Data Hold, Auto Power Off, and low-battery indication.clamp meter
Key Technical Specifications
-
Display: High-contrast VA Color Display Screen with True RMS 6000-counts for clear, precise waveform evaluation.
-
AC Current Range: 60A / 600A / 1200A
-
AC Voltage Range: 600mV up to 750V
-
DC Voltage Range: 600mV up to 1000V
-
Resistance Range: 600Ω up to 60MΩ
-
Capacitance Range: 60.00nF up to 60.00mF
-
Frequency Range: 10Hz up to 10MHz
-
Temperature Range: -40.0°C to +1000.0°C (-40.0°F to +1832.0°F) via thermocouple probe
