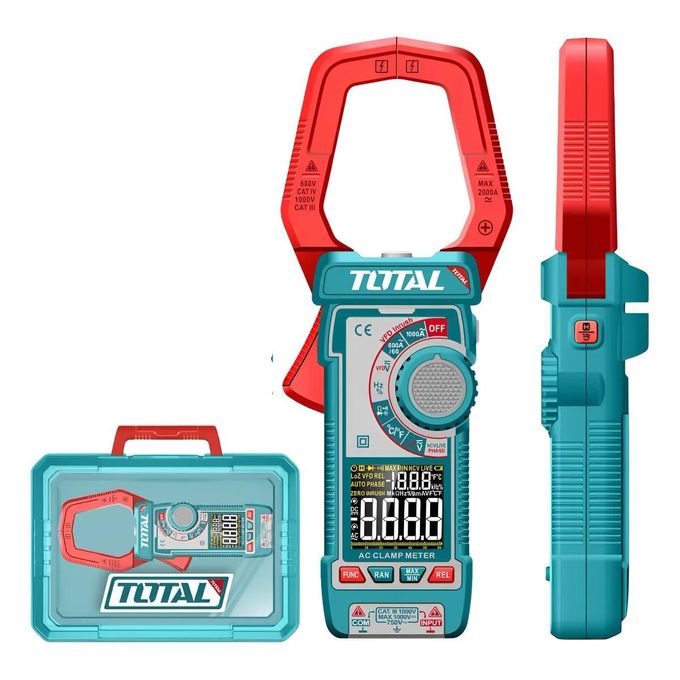

Total TMT7610002 DC/AC clamp meter 1200A 6000Counts
KSh8,999.00
Key Features & Capabilities
-
Dual AC/DC Current Clamping: Uses integrated internal Hall effect sensors to measure non-contact DC amps up to 1000A/1200A without opening the circuit—essential for solar power installs, battery banks, marine wiring, and electric vehicle diagnostics.
-
Inrush Current Measurement: Captures motor starting surge currents (inrush) on large HVAC compressors and industrial machinery to diagnose tripping breakers.
-
Phase Sequence Detection: Non-contact phase rotation check feature to ensure correct 3-phase motor wiring before startup.
-
Zero Function (DCA ZERO): Allows one-touch zeroing of stray magnetic fields before taking critical low DC amperage measurements.
-
True RMS Accuracy: Ensures precise voltage and current readings even on distorted sine waves produced by variable speed motor drives (VFDs) and solar inverters.
-
Non-Contact Voltage (NCV) & Live Wire Detection: Visual and audible alerts when detecting live AC mains voltage through insulation or tracing live cables.
-
Worklight & Dual Backlit Screen: Features an integrated jaw flashlight to illuminate dark panels and a bright LCD backlight with Data Hold, Max/Min retention, and auto power-off.

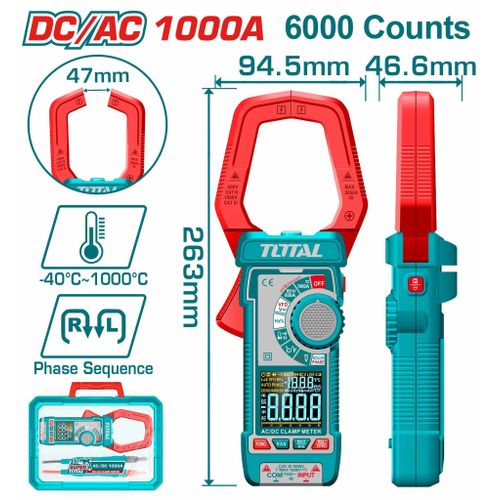

TOTAL TMT7610002 is an advanced, industrial-grade DC/AC Digital Clamp Meter designed for high-current electrical diagnostics. Unlike standard AC-only meters, the TMT7610002 incorporates Hall Effect sensors to directly clamp and measure both DC current (solar PV arrays, automotive systems, EV power banks, battery backups) and AC current up to 1000A/1200A with a 6,000-count True RMS display.
Technical Specifications
| Feature / Parameter | Range & Specifications |
| Model Number | TMT7610002 |
| Display Counts | 6,000 Counts |
| Measurement Type | True RMS |
| DC Current | 60A / 600A / 1000A (1200A Peak) |
| AC Current | 60A / 600A / 1000A (1200A Peak) |
| AC Voltage | 6V / 60V / 600V / 750V |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF |
| Frequency | 9.999Hz – 9.999MHz |
| Duty Cycle | 1% – 99% |
| Temperature | -40°C to 1000°C (-40°F to 1832°F) |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Power Source | 3 × 1.5V AAA Batteries |
