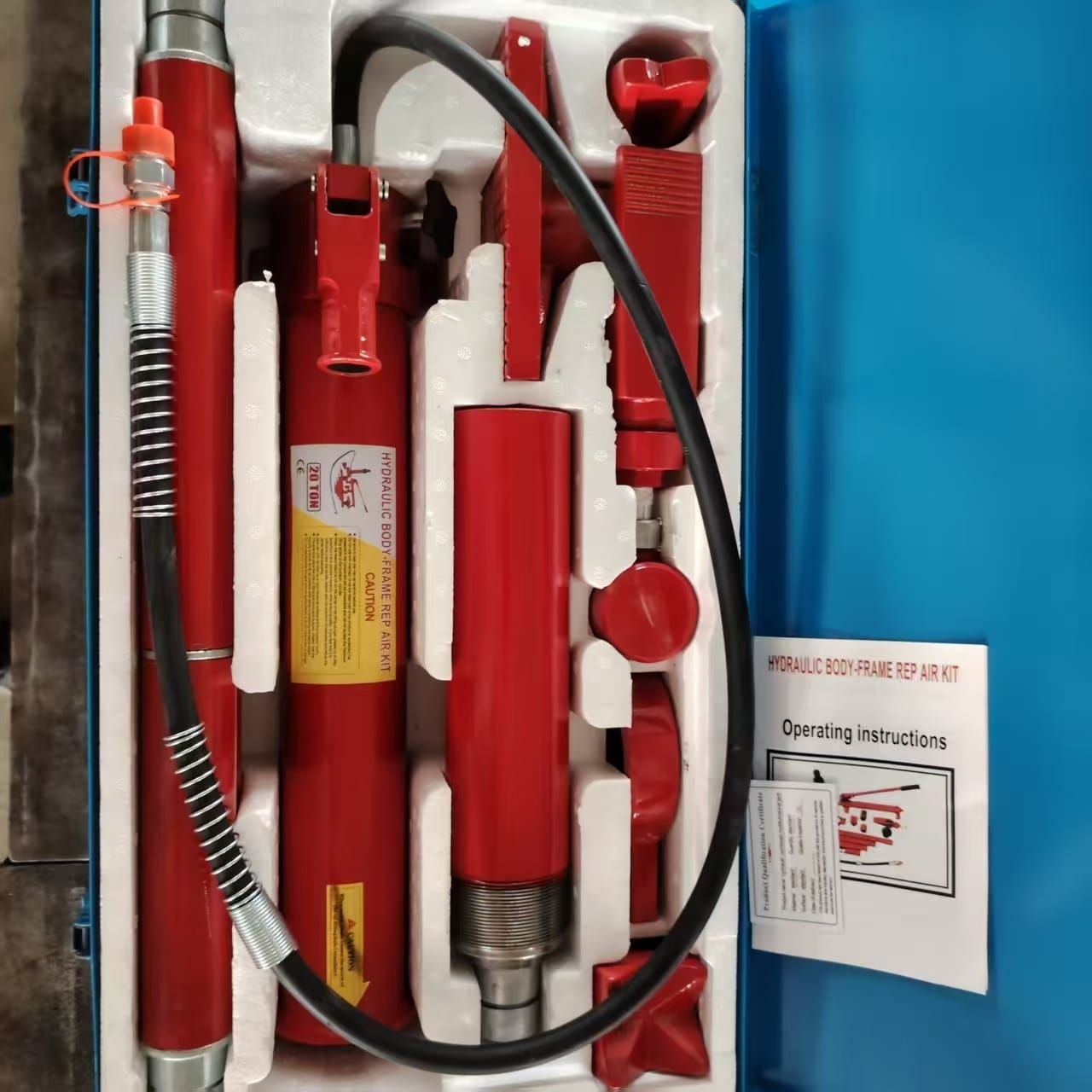

20-Tonne Hydraulic Body Repair Jack
KSh38,999.00
-
Heavy-Duty Chassis Straightening: 20 tonnes of hydraulic pressure easily handles bent truck frames, bus sub-structures, chassis rails, and heavy machinery pillars.
-
Quick-Connect Snap-Lock System: Allows fast assembly of extension rods, push heads, V-bases, and spreader feet for pushing, spreading, or aligning angles.
-
Safety Overload System: Integrated pressure valve inside the hand pump prevents over-pressurization to protect rams and hydraulic seals.Hydraulic Body Repair Jack
-
Primary Uses: Commercial vehicle body repairs, trailer frame straightening, structural steel alignment, and heavy machinery maintenance.
Technical Specifications
| Parameter | Standard Specification Details |
| Pushing / Lifting Capacity | 20 Tonne (20,000 kg / 44,000 lbs) |
| System Working Pressure | 69 MPa – 90 MPa (High-Pressure Hydraulic) |
| Ram Cylinder Stroke | 135 mm – 185 mm |
| Cylinder Minimum Height | 380 mm – 500 mm |
| Pump Type | Manual Hydraulic Hand Pump with Automatic Overload Bypass |
| Extension Tubes Included | 4-piece set (e.g., 100mm, 300mm, 500mm lengths) |
| Hydraulic Hose Length | 1.4 m to 1.5 m high-pressure steel-braided hose |
| Oil Type | HV15 / Grade 10 Hydraulic Oil |
| Gross Weight | 35 kg – 67 kg (depending on metal case & tube thickness) |
Key Features & Workshop Applications
-
Heavy-Duty Chassis Straightening: 20 tonnes of hydraulic pressure easily handles bent truck frames, bus sub-structures, chassis rails, and heavy machinery pillars.
-
Quick-Connect Snap-Lock System: Allows fast assembly of extension rods, push heads, V-bases, and spreader feet for pushing, spreading, or aligning angles.
-
Safety Overload System: Integrated pressure valve inside the hand pump prevents over-pressurization to protect rams and hydraulic seals.
-
Primary Uses: Commercial vehicle body repairs, trailer frame straightening, structural steel alignment, and heavy machinery maintenance.
