10-Tonne Hydraulic Body Repair Jack
KSh22,999.00

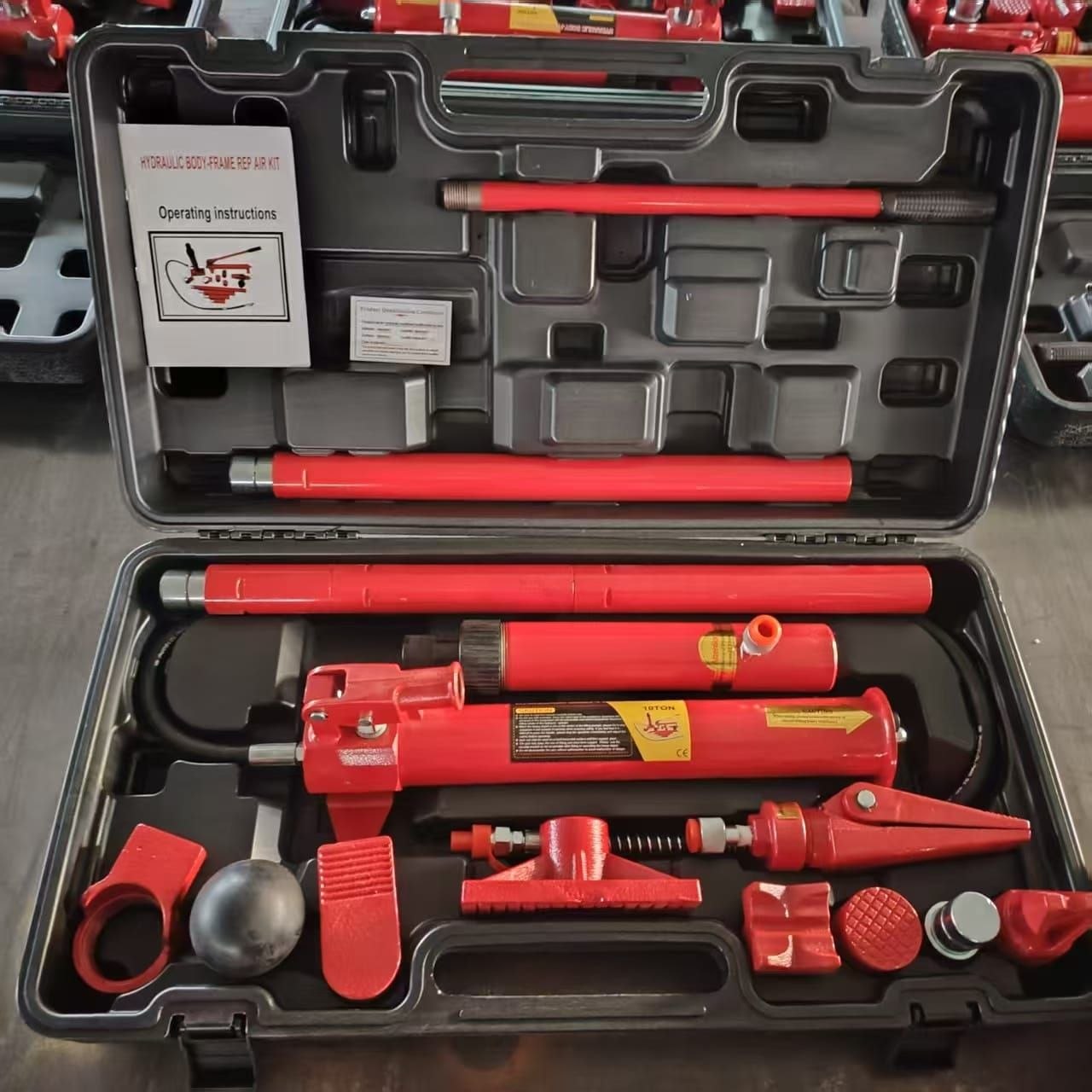

Standard Kit Components & Accessories
-
Hydraulic Hand Pump: Features a automatic safety overload valve to prevent system damage.
-
10T Hydraulic Ram & 0.5T Hydraulic Spreader: For heavy pushing and tight-gap wedge spreading.
-
Extension Tubes: Typically includes 4 interlocking heavy-gauge tubes (approx. 100mm, 200mm, 300mm, 500mm).
-
Attachment Heads:
-
Rubber Head (protects sheet metal/panels from denting during pushing)
-
Flat Base & V-Base (for pushing against round pipes or flat structural rails)
-
Serrated Saddle & Wedge Head (for secure grip on angled surfaces)
-
Plunger Toe & Cleft Cap
-
10-Tonne Hydraulic Body Repair Jack (commonly referred to as a 10T Porta-Power Kit) is the standard workshop size for automotive body collision repairs, chassis frame alignment, panel straightening, and heavy structural pushing or spreading.
Technical Specifications
| Parameter | Standard Specification Details |
| Pushing / Lifting Capacity | 10 Tonne (10,000 kg / 22,000 lbs) |
| Hydraulic Working Pressure | 62 MPa – 70 MPa |
| Ram Minimum Height | 355 mm – 390 mm |
| Ram Lifting Stroke | 130 mm – 150 mm |
| Hydraulic Spreader Capacity | 0.5 Tonne (500 kg) |
| Spreader Max Opening | 90 mm – 100 mm |
| Hose Length | 1.4 m to 1.5 m high-pressure quick-connect hose |
| Case / Set Weight | 27 kg – 31 kg (in steel transport case) |
