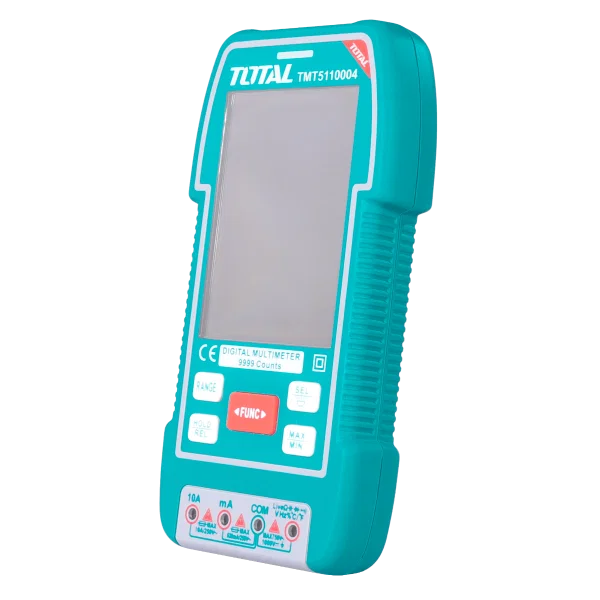

Total TMT5110004 Digital multimeter 1000V 9999Counts
KSh7,999.00
Key Features & Design Highlights
-
High-Resolution 9,999-Count Screen: Displays extra precision digits compared to standard 2,000/4,000-count multimeters, making it ideal for checking low-voltage drift, precise resistor tolerances, and delicate electronic signals.
-
True RMS Accuracy: Correctly reads non-sinusoidal AC waveforms produced by variable speed motor drives, solar inverters, and modern computer power supplies.
-
Integrated Temperature Measurement: Includes a K-type thermocouple probe input to directly read component, HVAC duct, or liquid temperatures in °C or °F.
-
Non-Contact Voltage (NCV) Sensing: Built-in NCV detector alerts users visually and audibly when brought near live mains wiring, breakers, or outlets without physical metal contact.
-
Smart Auto/Manual Ranging: Automatically sets optimal measurement scales while allowing manual lock-in for fast repetitive testing.
-
Full Diagnostic Suite: Includes live wire identification (Live Line test), diode testing, fast continuity buzzer, Max/Min/Relative value display, and a Data Hold function.
-
Dual LED Illumination & Display Backlight: Features an integrated rear flashlight and a bright LCD backlight for working inside dark electrical panels.
TOTAL TMT5110004 is a high-precision, auto-ranging digital multimeter built for industrial, commercial, and high-voltage troubleshooting. Featuring a high-resolution 9,999-count LCD screen, True RMS capability, and high CAT III 1000V / CAT IV 600V safety ratings, it provides fast, precise measurements across electrical circuits, HVAC equipment, and industrial electronics.
Technical Specifications
| Feature / Measurement | Range & Specifications |
| Model Number | TMT5110004 |
| Display Counts | 9,999 Counts |
| Measurement Type | True RMS |
| DC Voltage | 999.9mV / 9.999V / 99.99V / 999.9V |
| AC Voltage | 999.9mV / 9.999V / 99.99V / 750V |
| DC Current | 9.999mA / 99.99mA / 999.9mA / 9.999A |
| AC Current | 9.999mA / 99.99mA / 999.9mA / 9.999A |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ |
| Capacitance | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 99.99mF |
| Frequency | 9.999Hz – 9.999MHz |
| Duty Cycle | 1% – 99% |
| Temperature Range | -20°C to 1000°C (-4°F to 1832°F) |
| Safety Standard | CAT III 1000V / CAT IV 600V |
| Power Supply | 2 × 1.5V AA Batteries (or 3 × AAA depending on region batch) |
