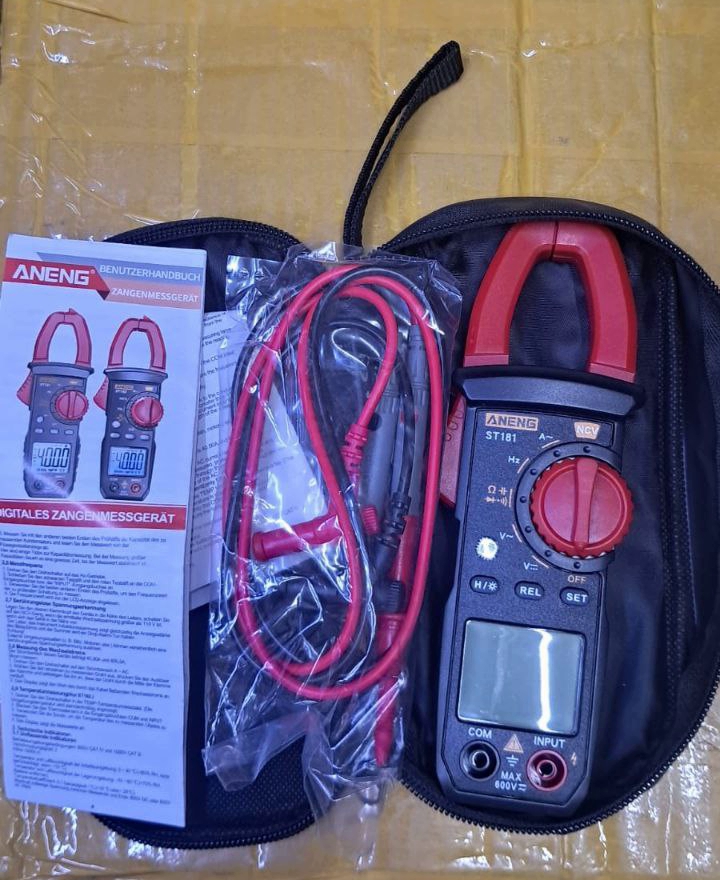

Quality Ac clamp meter

An AC clamp meter is a specialized electrical testing tool that is highly valued for its safety and convenience. It is essentially a digital multimeter with the added functionality of a current sensor built into its hinged jaws.

How it Works

The primary purpose of an AC clamp meter is to measure alternating current (AC) without the need to physically break or disconnect the circuit. It works on the principle of magnetic induction.

1. Magnetic Field: When AC flows through a wire, it generates a fluctuating magnetic field around it.
2. Sensing: The clamp meter’s jaws, which are made of a ferrous material like ferrite iron, are designed to detect and concentrate this magnetic field when clamped around a single conductor.
3. Measurement: A coil of wire within the jaws senses the magnetic field, and the meter’s internal circuitry then translates this signal into a current reading that is displayed on the screen.

Because the measurement is taken without direct contact with the live wire, it is a much safer alternative to a traditional multimeter, which would require you to connect the probes in series with the circuit.

Key Features and Uses

• Safety: This is the biggest advantage. By allowing you to measure current without cutting the wire or touching a live terminal, a clamp meter significantly reduces the risk of electric shock.
• Convenience: There’s no need to shut down the circuit to take a measurement, which is crucial for troubleshooting and maintenance in industrial, commercial, and residential settings.
• High Current Measurement: While most digital multimeters can only measure up to 10-20 Amps, a clamp meter is designed to measure much higher currents, with ranges often extending up to 200A, 400A, 600A, or even 1000A.
