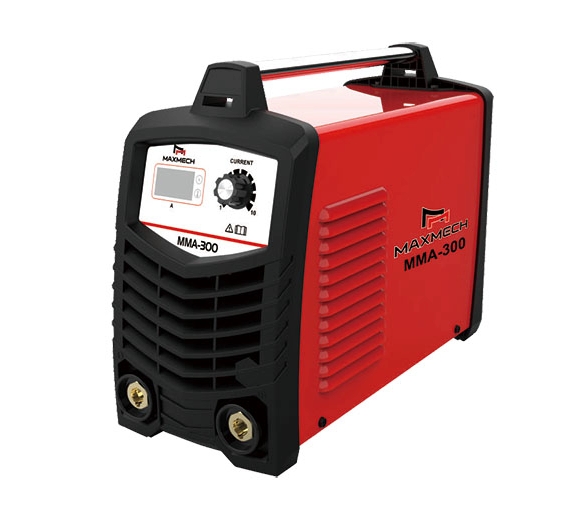

Maxmech Inverter Welding Machine MMA-300AMP

A “Maxmech Inverter Welding Machine MMA-300AMP” is a very powerful and robust electric welding machine designed for heavy-duty professional and industrial welding tasks. The “MMA” specifies its primary function as a Manual Metal Arc (Stick) welder, and “300AMP” indicates its substantial maximum current output.

Here’s a detailed breakdown of what this machine offers:

• Maxmech: This is the brand. Maxmech is well-regarded in the Kenyan market for providing power tools and machinery that strike a balance between performance, durability, and affordability, making them popular among professional welders and heavy-duty users.

• Inverter Welding Machine: This refers to the advanced technology used in the welder.

  • Technology: Unlike older, heavier transformer-based welders, inverter welders use sophisticated electronic components (typically IGBT – Insulated Gate Bipolar Transistors) to convert the incoming AC power into a highly stable, high-frequency, and precisely controllable DC welding current.
  • Key Advantages:
    • High Portability: Despite its high power, an inverter 300AMP welder is significantly lighter and more compact than a traditional transformer welder of comparable output. This makes it highly suitable for on-site fabrication, construction, and repair work where portability is crucial.
    • Energy Efficiency: These machines are much more energy-efficient, drawing less power from the grid while delivering robust welding output.
    • Superior Arc Performance: Inverter technology provides a very smooth, stable, and controllable welding arc. This facilitates easier arc starting and allows welders to achieve high-quality, strong welds. Common features include:
      • Hot Start: Briefly increases the current at the moment of arc ignition to prevent the electrode from sticking.
      • Anti-Stick: Automatically reduces the current if the electrode sticks to the workpiece, making it easier to detach without damaging the electrode or the machine.
      • Arc Force (or Arc Dynamics): Helps to maintain a stable arc by preventing it from extinguishing during short circuiting or when the arc length varies, ensuring consistent penetration.
    • Multi-Process Capability (Common): While primarily an MMA welder, many 300A inverter machines from Maxmech often offer basic DC TIG welding capabilities (lift-start or scratch-start TIG), though this would require an optional TIG torch, gas cylinder, and regulator.

• MMA (Manual Metal Arc): This designates its primary welding process. MMA welding, also known as Stick Welding or Shielded Metal Arc Welding (SMAW), uses a consumable electrode coated in flux. It’s highly versatile, suitable for a wide range of ferrous metals (mild steel, stainless steel, cast iron), and excels in outdoor conditions because the flux coating provides shielding independent of external gas.

• 300AMP (Amperes): This indicates the maximum welding current output.

  • Immense Power & Capacity: 300 amps is a very high power output for a single-phase inverter welder. This allows the machine to:
    • Weld Very Thick Materials: Capable of welding very thick metal plates, often 10mm (3/8 inch) and upwards, in multiple passes, achieving deep and robust penetration.
    • Handle Large Electrodes: Efficiently burn larger diameter welding electrodes (rods), including 2.5mm, 3.2mm, 4.0mm, 5.0mm, and even potentially 6.0mm (though 5.0mm is more common for single-phase 300A machines). These larger electrodes are used for heavy structural work and applications requiring high deposition rates.
  • Duty Cycle: This is a critical factor for any welding machine. For a 300AMP machine, a typical duty cycle might be around 60% at 300 Amps. This means the machine can weld continuously at 300 Amps for 6 minutes out of every 10-minute period before needing to cool down. At lower amperages (e.g., 200-250 Amps), the duty cycle would be significantly higher, often 100%, allowing for continuous welding without interruption.
